Name: MSI PRO H610M-S WIFI DDR4 LGA1700 Motherboard
Brand: MSI
SKU: MB1444
Price: 1270000 IDR
Availability: InStock

MSI PRO H610M-S WIFI DDR4 LGA1700 Motherboard

Rp1.270.000

LGA1700 & Intel H610 – Mendukung Intel Core Gen 12, 13, dan 14 untuk berbagai kebutuhan PC.
DDR4 hingga 64GB – Dilengkapi 2 slot RAM DDR4 dual-channel hingga 3200MHz.
PCIe 4.0 x16 – Mendukung VGA card modern dengan bandwidth hingga PCIe 4.0 x16.
M.2 NVMe Gen3 x4 – Slot M.2 2280 dengan bandwidth PCIe Gen3 x4 untuk storage NVMe berkecepatan tinggi.
Wi-Fi 6E – Koneksi wireless hingga 2,4Gbps dengan dukungan band 2,4GHz, 5GHz, dan 6GHz*.
Bluetooth 5.3 – Memudahkan koneksi berbagai perangkat wireless seperti keyboard, mouse, headset, dan controller.
Gigabit LAN – Menggunakan Realtek RTL8111H untuk koneksi jaringan kabel hingga 1Gbps.
Audio Boost – Realtek ALC897 dengan dukungan audio HD 7.1-channel.
Core Boost – Desain power digital MSI untuk membantu menyediakan daya yang stabil bagi prosesor.
Memory Boost – Optimalisasi jalur memori untuk membantu meningkatkan stabilitas dan kompatibilitas RAM.
PCIe Steel Armor – Memperkuat slot PCIe x16 sekaligus membantu melindungi VGA dari bending dan EMI.
EZ Debug LED – Membantu proses troubleshooting ketika terjadi masalah saat proses booting.
Micro-ATX – Ukuran 23,6 × 20 cm yang cocok untuk rakitan PC dengan casing compact.

Description

MSI PRO H610M-S WIFI DDR4 adalah motherboard Micro-ATX dengan chipset Intel H610 dan socket LGA1700, mendukung prosesor Intel Core Generasi 12, 13, dan 14. Dilengkapi 2 slot DDR4 hingga 64GB, PCIe 4.0 x16, M.2 NVMe PCIe Gen3 x4, Wi-Fi 6E, Bluetooth 5.3, dan Gigabit LAN untuk membangun PC yang praktis dan lengkap.

Spesifikasi	MSI PRO H610M-S WIFI DDR4
Socket	INTEL LGA1700
Chipset	INTEL H610
CPU Support	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Form Factor	Micro-ATX
Memory	2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Expansion Slot	1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Onboard Graphics	1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage	1x M.2 (Qty) M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 2x SATA 6G (Qty)
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
LAN	Realtek^® RTL8111H Gigabit LAN
Internal Connectors	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports
Wireless Lan & Bluetooth	Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth^® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED Feature	4x EZ Debug LED

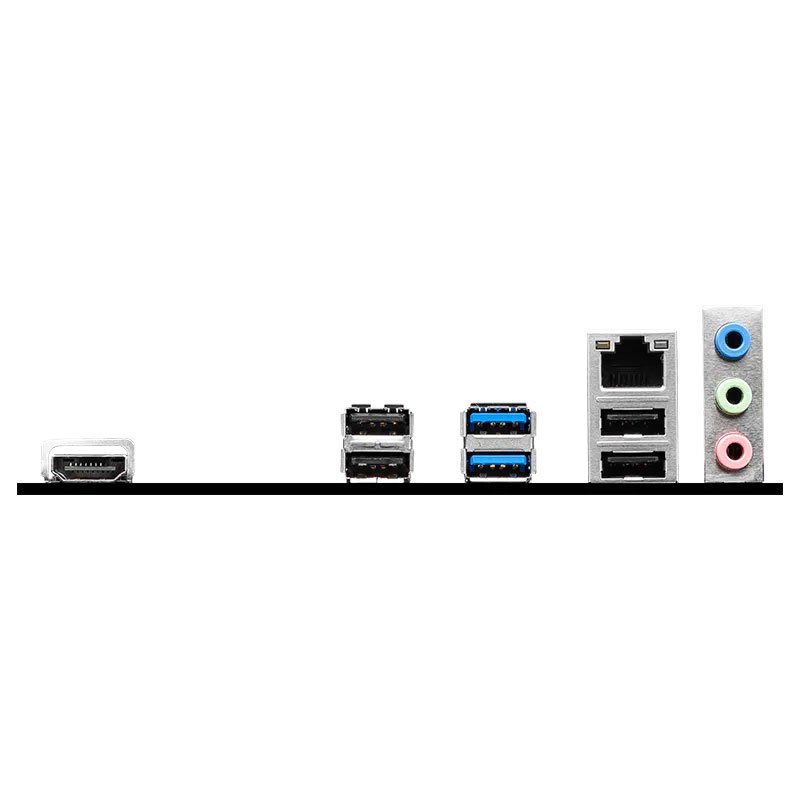

Back Panel Ports	HDMI™ USB 2.0 USB 5Gbps Type-A LAN port Audio Connectors USB 2.0
Dimensions	mATX 200mmx236.16mm
Mounting	6 mounting holes
Garansi	Garansi Resmi Distributor 3 Tahun
