MSI PRO B550M-P WIFI6E AM4 DDR4 M-ATX Motherboard

Rp1.690.000

  • AMD B550 Chipset & Socket AM4 – mendukung prosesor AMD Ryzen 5000, 3000 dan Ryzen 4000 G-Series.
  • DDR4 hingga 128GB – 4 slot DIMM dual-channel dengan dukungan hingga 4400+ MT/s melalui A-XMP OC.
  • PCIe 4.0 x16 – bandwidth tinggi untuk kartu grafis generasi terbaru.
  • 2× M.2 NVMe – 1 slot PCIe 4.0 x4 dan 1 slot PCIe 3.0 x4 untuk penyimpanan berkecepatan tinggi.
  • Wi-Fi 6E – mendukung koneksi 2.4GHz, 5GHz dan 6GHz dengan MU-MIMO.
  • Bluetooth 5.3 – koneksi praktis untuk perangkat wireless seperti keyboard, mouse dan headset.
  • Gigabit LAN – Realtek RTL8111H 1Gbps untuk koneksi jaringan kabel yang stabil.
  • 7.1-Channel HD Audio – Realtek ALC897 dengan dukungan Audio Boost.
  • EZ Debug LED – membantu memudahkan proses pengecekan masalah hardware saat PC mengalami kendala booting.
  • Frozr AI Cooling – mendeteksi temperatur CPU/GPU dan menyesuaikan kecepatan kipas secara otomatis.
  • PCIe Steel Armor – memperkuat slot PCIe dan membantu melindungi kartu grafis.
  • Form Factor mATX – ukuran 243,84 × 243,84 mm, cocok untuk casing Micro-ATX.
  • Garansi Resmi Distributor 3 Tahun
Beli di WhatsApp
SKU: MB1445 Category: Tags: , , , , , Brand:

Description

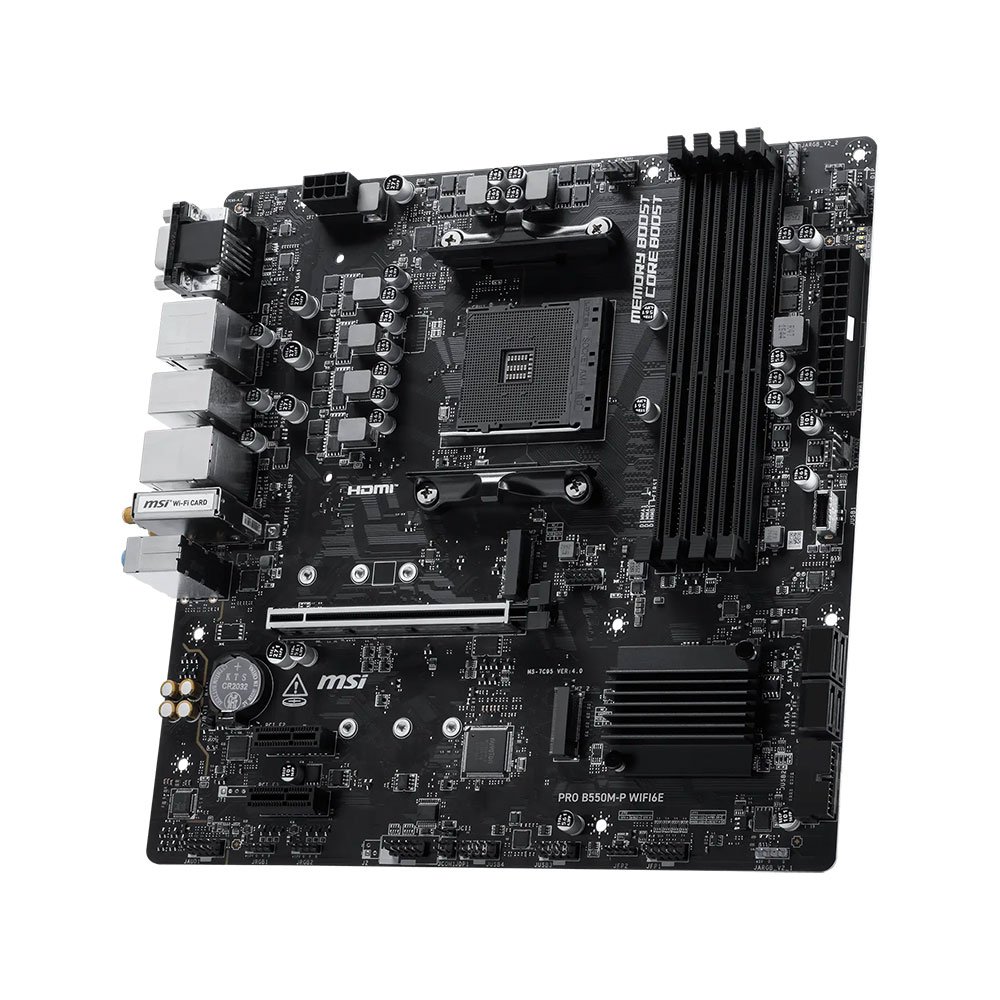

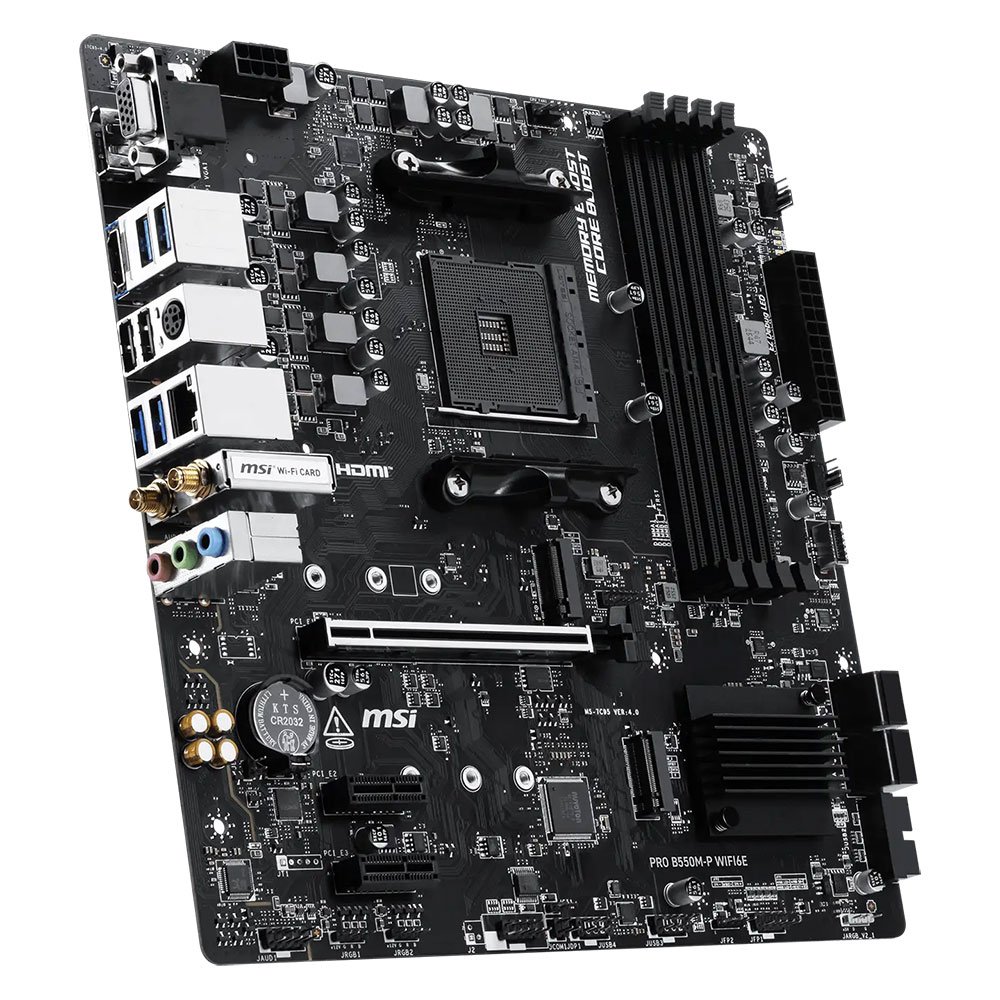

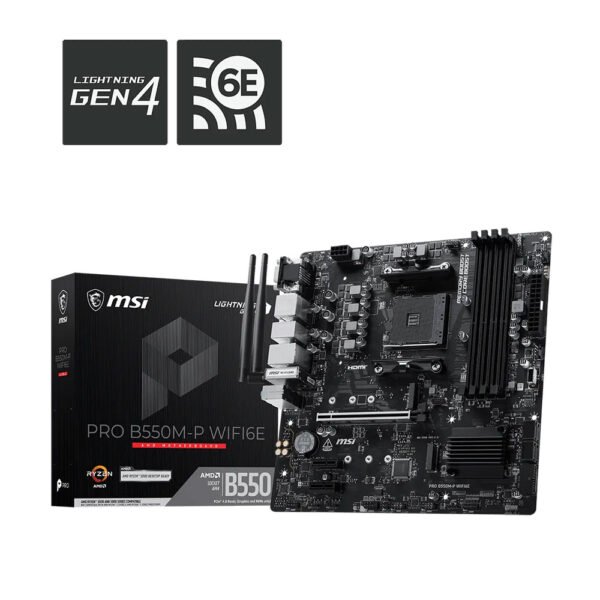

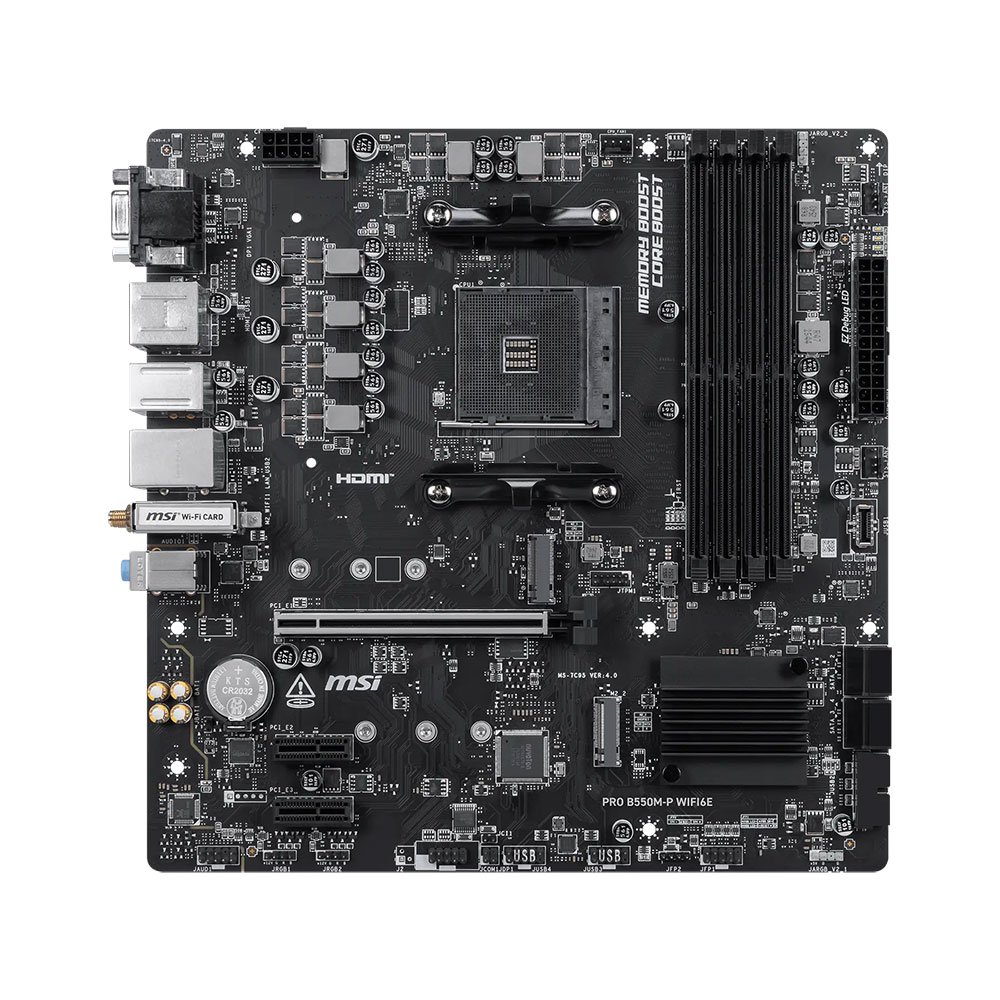

MSI PRO B550M-P WIFI6E adalah motherboard M-ATX berbasis chipset AMD B550 dengan socket AM4, cocok untuk membangun PC gaming, kerja, maupun kebutuhan multimedia. Mendukung hingga 128GB DDR4, PCIe 4.0, dua slot M.2 NVMe, serta konektivitas Wi-Fi 6E dan Bluetooth 5.3. Dilengkapi Gigabit LAN, 7.1-channel HD Audio, EZ Debug LED, dan fitur Frozr AI Cooling untuk membantu menjaga sistem tetap optimal.

SpesifikasiMSI PRO B550M-P WIFI6E
SocketAMD AM4
ChipsetAMD B550
CPU SupportSupports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Form FactorMicro-ATX
Memory4x DDR4, Maximum Memory Capacity 128GB
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
Max. overclocking:
• 1DPC 1R Max speed up to 4400+ MT/s
• 1DPC 2R Max speed up to 3733+ MT/s
• 2DPC 1R Max speed up to 3866+ MT/s
• 2DPC 2R Max speed up to 3466+ MT/sSupports JEDEC Speed
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Memory Overclocking by A-XMP OC mode

• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Expansion Slot1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
*The supported specification depends on installed processor.
Onboard Graphics1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Supports DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048×1536 50Hz, 1920×1200 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G
*The supported specification depends on installed processor.
RAIDSupports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
AudioRealtek® ALC897 Codec
7.1-Channel High Definition Audio
LANRealtek® RTL8111H 1Gbps LAN
Wireless LAN & BluetoothWi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Dual-band 1T1R mode
Supports MU-MIMO RX
Supports 2.4GHz/ 5GHz/ 6GHz* frequency band
Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3**

* The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.

Internal Connectors1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports

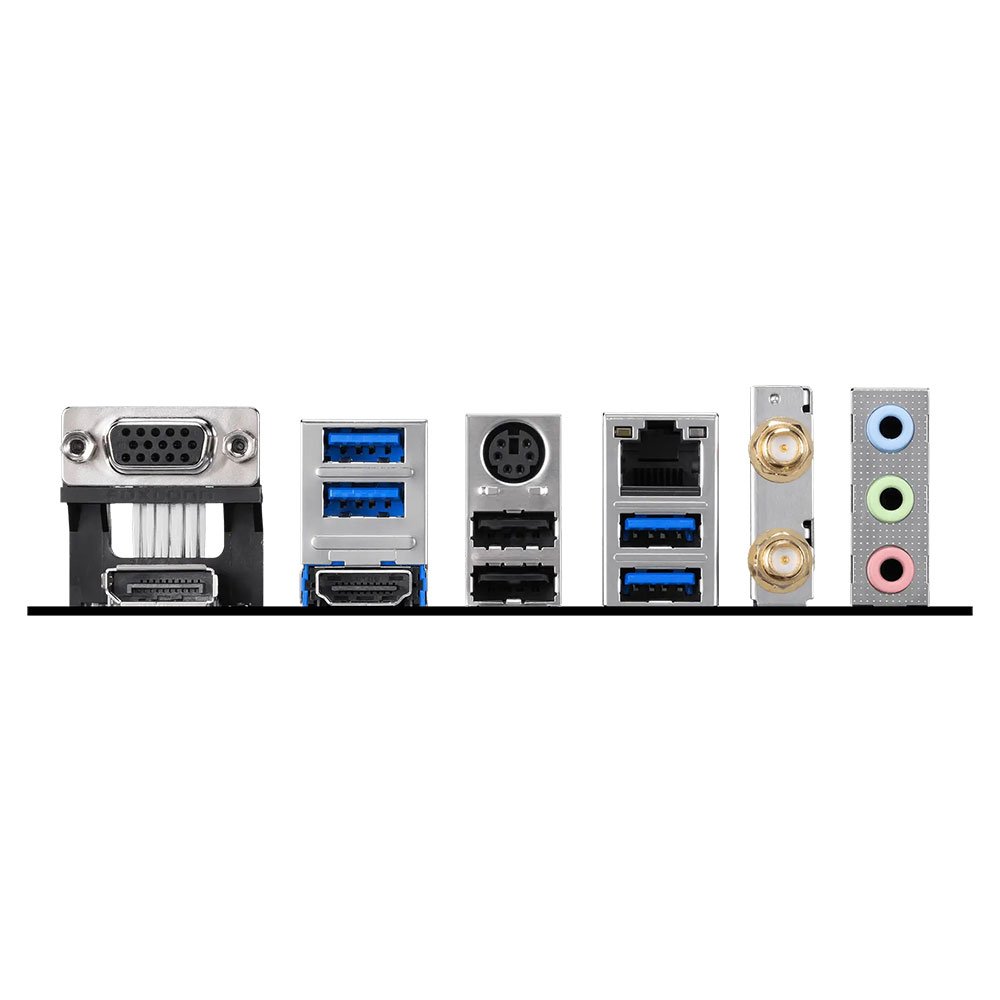

Back Panel Ports

  1. VGA
  2. USB 5Gbps Type-A
  3. Keyboard / Mouse
  4. LAN Port
  5. Wi-Fi / Bluetooth
  6. Audio connectors
  7. DisplayPort
  8. HDMI™
  9. USB 2.0
  10. USB 5Gbps Type-A
Led Feature4x EZ Debug LED
DimensionsmATX
243.84mmx243.84mm
GaransiGaransi Resmi Distributor 3 Tahun
